ATI EXTENDED BRAIDED BRAKE LINES - FRONT - ISUZU DMAX/MAZDA BT50 2020-CURRENT

SKU: ATIBBL15F

ATI EXTENDED BRAIDED BRAKE LINES - FRONT - ISUZU DMAX/MAZDA BT50 2020-CURRENT

SKU: ATIBBL15F

$129
-
+

Description

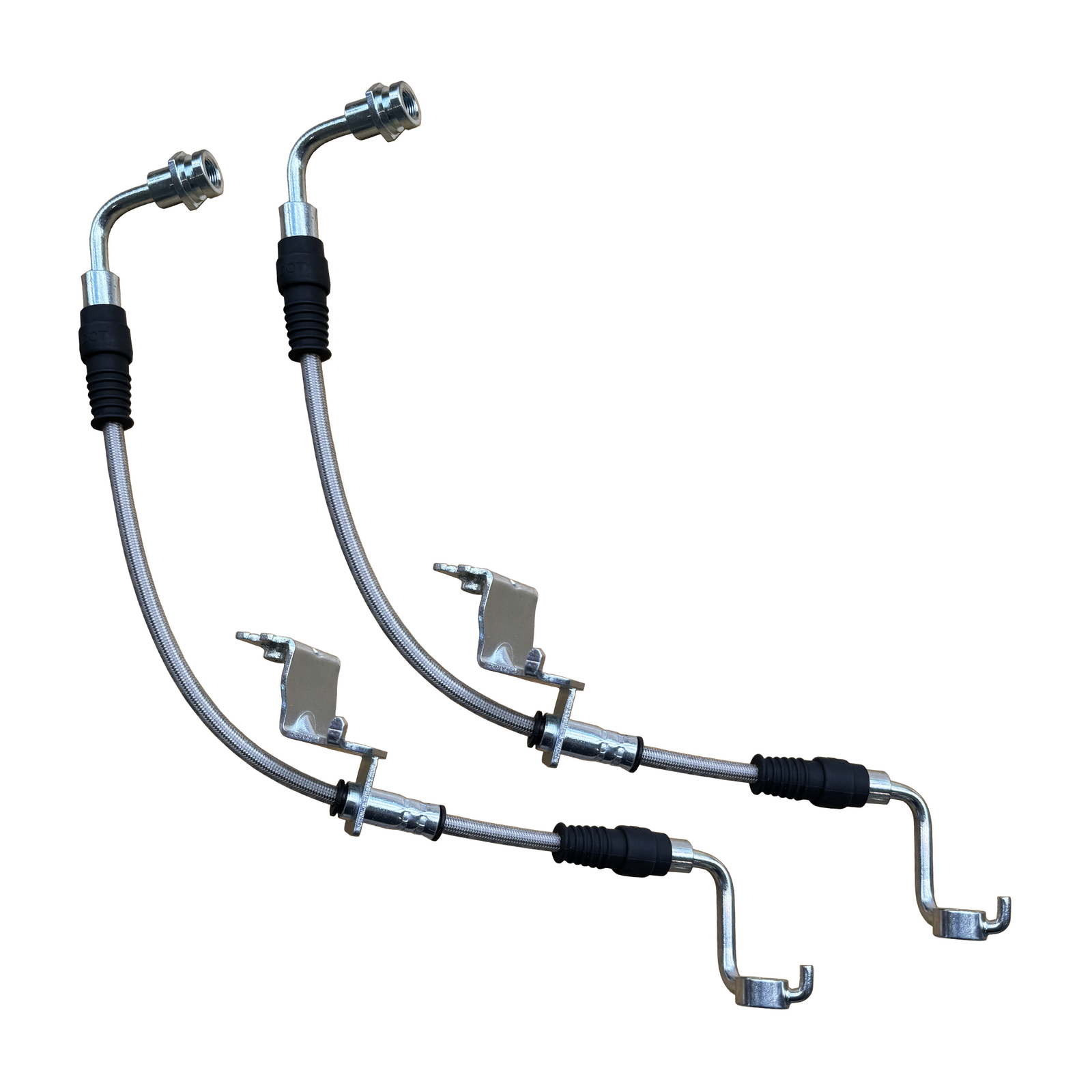

ATI EXTENDED BRAIDED FRONT BRAKE LINES



COMPATIBILITY:
  • ISUZU DMAX 2021 - CURRENT
  • MAZDA BT50 TF 2020 - CURRENT



It is common for the brake lines of most vehicles to become tight when lifted above 2 inches, if not extended they are left prone to fatigue and failure. The ATI braided brake lines will not expand under high pressure and temperature, this allows a consistent line pressure giving a firmer and more efficient brake system operation, eliminating that 'spongy' pedal feel.



Features:
  • Improved safety with enhanced performance
  • Eliminates spongy pedal feel under heavy braking
  • Can reduce braking distance during a panic stop
  • Compatible with all approved brake fluids
  • Abrasion and corrosion resistant
  • ADR 42/04 compliant
  • 5 year warranty



Specifications:
  • Length: 440mm
  • Hose Inner Material: PTFE Teflon
  • Hose Outer Material: 304 stainless steel with PVC outer cover
  • Fitting Material: Steel
  • Temperature Range: -70°C to 260°C
  • Inside Diameter: 3.2mm
  • Outside Diameter: 7.5mm
  • Maximum Working Pressure: 3500PSI
  • Burst Pressure: 12550-13500PSI



Kit Includes:
  • 2 braided brake lines





Specifications
SKU ATIBBL15F
Brand All Terrain Industries
Shipping Weight 0.4080kg
Shipping Width 0.300m
Shipping Height 0.035m
Shipping Length 0.150m
Shipping Cubic 0.001575000m3
